SENECA S.R.L.

External Relay interface for Z-PC modules

Mixed module with 16 CH digital inputs and 8 CH digital outputs, 32-bit counters in the inputs with a frequency of 10kHz, communication protocol: CANopen or ModBUS RTU (protocol selectable by dip-switch), power supply 10 to 40Vdc / 19 to 28Vac

24 CH DI module / CANOPEN-RS485 ModBUS RTU

24 CH DO module / CANopen-RS485 ModBUS RTU

DAQ module with CANopen protocol and 8 independent input channels for J, K, E, N, S, R, B, and T thermocouples. CANopen communication port on IDC10 connector and Modbus RTU via RS232 jack port. For CANopen communication and power supply connection, module Z-PC-DINAL2-17.5 is required; power supply required is 10-40 Vdc or 19-28 Vac

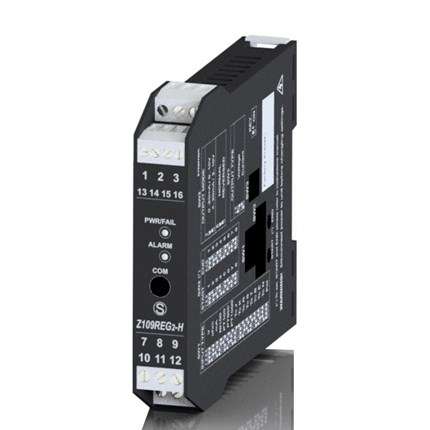

Module with a universal analog input (Voltage, Current, potentiometer, TC, RTD) and an active output 4 to 20mA or 0 to 20mA with PID regulation. Modbus RTU communication with RS-485 port (Requires Z-PC-DINAL2-17.5), power supply 10~40Vdc or 9~28Vac

Strain gauge module / CANOPEN

5 CH DI module / RS485 ModBUS RTU

5 CH DO Relay module / RS485 ModBUS RTU din rail mounting

1 slot 35mm DIN rail bus system for Z-PC Line I/O fast mounting and connection

DIN rail Plastic clip (spare part) for transducers T201 Series

Back rail mounting, expansion for digital Z-PC-DINAL2-17.5 (for 17.5 mm width devices), 2 slot block

Back rail mounting 17.5 mm (8 slots)

Head + 2 slots - 17/5 mm step (for Rs485 and power supply connections Z-line)

Strain gauge / load cell signal converter. Input for 4 or 6 wire. Input 1~64mV/V settable by DIP-switch or software, analog output configurable 0~20, 4~20 mA, 0~5 or 0~10 Vdc. Power supply 10~40Vdc or 19~28Vac, Modbus RTU.

Single-phase switching power supply 24V @ 1.5A

AC three phase network analyzer with energy meter. Voltage Input: 0~600 Vac. Current Input 0~5 Arms. Digital Output: Energy meter pulse. Analog Output: Re-transmitted (mA/ V). Power S

AC / DC contactless TRMS direct and alternate current transducer with input for +/- 100A AC / DC, configurable by DIP switch, output from 0 a 10Vdc, diameter of 20.8 mm, power supply 12 to 28VDC, Includes 2 x A-DIN-T201 for DIN rail mounting

AC/DC contactless TRMS direct and alternate current transducer with input for +/- 300A AC/DC, configurable by DIP switch, output from 0 a 10 Vdc, diameter of 20.8 mm, power supply 12 to 28 Vdc, Includes 2x A-DIN-T201 for DIN rail mounting

USB - UART TTL converter. with PM002412 cable
